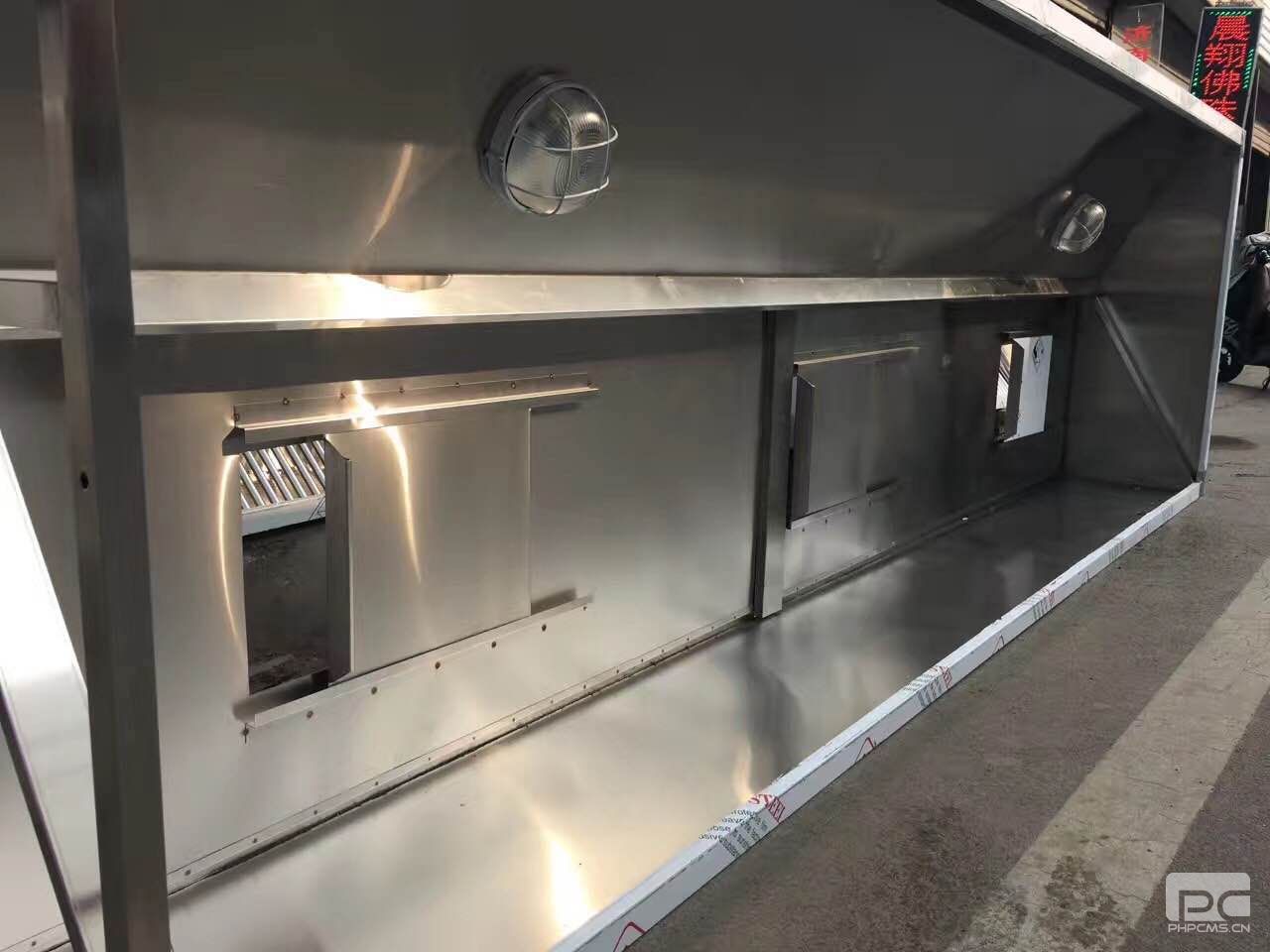

濟南排煙罩是由罩體和罩蓋上下兩部分構成，罩體由三個平面組成，罩蓋由前、后、左、右四個平面(或稱擋板)構成一個錐體。

　　The smoke exhaust hood of Ji'nan consists of two parts: cover and cover. The cover is made up of three planes, and the cover consists of four planes (or baffle), front, back, left and right.

　　其錐體的下端與罩體相連，上端與抽油煙機相連，活動擋板開在罩體或罩蓋靠近窗戶的任意一面，前擋板帶有缺口美觀、精致，抽油煙徹底，同時不污染環境，有利于人體健康，結構簡單，造價便宜。

　　The lower end of the cone are connected with the cover body, and the upper end is connected with a fume extractor, a movable baffle opening in the cover body or any cover near the window side, a front baffle with a gap of beautiful and delicate, lampblack thoroughly, and no environmental pollution, is conducive to human health, has the advantages of simple structure, low cost.

　　設備全部由不銹鋼制成,所有聯結處為防水、防蒸汽、防油煙。

　　All the fittings are made of stainless steel and all joints are waterproof, steam proof and smoke proof.

　　(風罩嵌入吊頂內,兩者之間設有不銹鋼裝飾板,用厚度1.2㎜的不銹鋼板制造,易拆卸,嵌入深度≥100㎜。

　　(hood embedded in the ceiling, stainless steel plate, is arranged between the stainless steel plate manufacturing, with a thickness of 1.2 mm and easy disassembly, embedding depth more than 100 mm.

　　全部罩體用厚度大于1.0㎜的不銹鋼板制造.通風管用1.0鍍鋅板制成，設有不銹鋼鐵風量調節閥。

　　All stainless steel body with cover thickness greater than 1 mm. 1 for manufacturing ventilation made of galvanized plate, a stainless steel valve.

　　照明設備是防濺,防水、內凹型的,分布于每1000㎜距離，并應將所有電線套于導管中，用接駁箱連接。照度裝置大于等于600lux,采用芝光管燈,統一的電力接口。

　　Lighting equipment is splash proof, waterproof, concave type, distribution in each 1000 mm distance, and should be set to all wire conduit, connected with the connection box. The illumination device is greater than or equal to 600lux, the use of energy-saving Chicago neon lights, power unified interface.

　　風罩豎板帶有一體環繞的自排裝置,排放槽易于清洗油煙、蒸汽,排放管為不銹鋼制,并聯風罩的全自動自清潔裝置。

　　Since the exhaust hood with vertical one surround, easy cleaning, fume discharge tank steam discharge pipe made of stainless steel, in parallel to the hood automatic self cleaning device.
